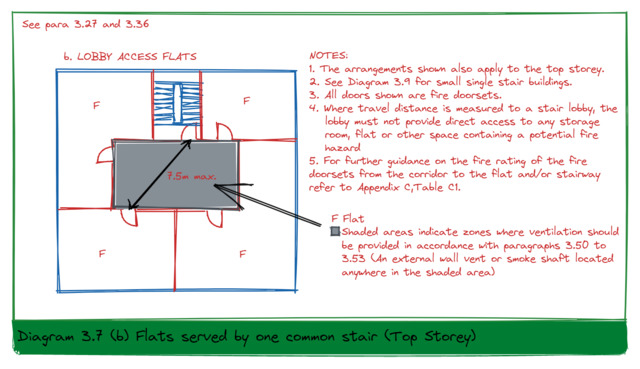

Diagram 3.7 (b) Flats served by one common stair

Department for Communities and Local Government, (2019) Diagram 3.7 (b) Flats served by one common stair. [Image]

[img]
Preview

Download (282kB) | Preview
[img]
Preview

Download (293kB) | Preview

Abstract

See paras 3.27 and 3.36
NOTES:
1. The arrangements shown also apply to the top storey.
2. See Diagram 3.9 for small single stair buildings.
3. All doors shown are fire doorsets.
4. Where travel distance is measured to a stair lobby, the lobby must not provide direct access to any storage room, flat or other space containing a potential fire hazard.
5. For further guidance on the fire rating of the fire doorsets from the corridor to the flat and/or stairway refer to Appendix C ,Table C1.
F Flat
Shaded areas indicate zones where ventilation should be provided in accordance with paragraphs 3.50 to 3.53(An external wall vent or smoke shaft located anywhere in the shaded area)
